Description
Front wheel flange set, for spoke wheel conversions to 320mm brake discs as used on V11 or Griso 1100.
Compatible to original front wheel hubs and to our cnc hubs.
The flanges are bolted through the hub to fasten them. Rotors are then screwed to the flanges using standard M8 screws
Offset is 33,5 mm, resulting in a (middle to middle) distance of 115mm for the discs. This is the correct displacement for our 1000-S/LM-1000/T5 conversion kit, but other measurements are possible.

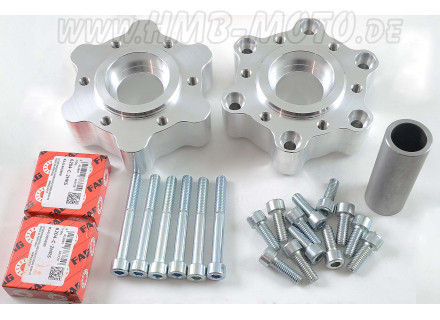

Includes:
1 flange set 33,5 mm (1 left and one right)
Bolts for fastening on hub
Screws for fastening rotors
Bushing between bearings
Wheel Bearings
If you choose custom dimensions (must be smaller then 33 mm), we adapt the offset to your needs. Please inform us about this in advance, for example by message form during shop checkout. Of course, bolt and inner sleeve lengths are taken into account in this case also.
Compatible to original front wheel hubs and to our cnc hubs.
The flanges are bolted through the hub to fasten them. Rotors are then screwed to the flanges using standard M8 screws
Offset is 33,5 mm, resulting in a (middle to middle) distance of 115mm for the discs. This is the correct displacement for our 1000-S/LM-1000/T5 conversion kit, but other measurements are possible.
Includes:
1 flange set 33,5 mm (1 left and one right)
Bolts for fastening on hub
Screws for fastening rotors
Bushing between bearings
Wheel Bearings
 |
New precision production made from 7075 aluminium. This complete set is uniquely our own design and production. Unlike the old cast flanges, this version allows the front wheel to be centered precisely. |
If you choose custom dimensions (must be smaller then 33 mm), we adapt the offset to your needs. Please inform us about this in advance, for example by message form during shop checkout. Of course, bolt and inner sleeve lengths are taken into account in this case also.
